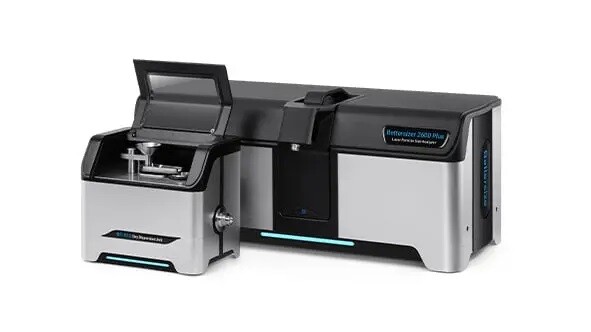

Bettersizer 2600 Plus Automatic Dry and Wet Particle Size Analyzer
Bettersizer 2600Plus is a powerful laser particle size analyzer provides accurate particle size distributions with both wet and dry dispersion methods.
Description
Wide-Angle Signal Collection for Reliable PSD
Bettersizer 2600 Plus is engineered to deliver stable, reliable particle size distributions across the wide measurement range by capturing comprehensive scattering signals. Its patented Fourier and inverse-Fourier optical system enhances signal collection and measurement robustness.
- 92-detector array for high-quality scattering detection
- 0.016°–165° angular coverage for fine and coarse particles
- Tilted sample cell design for reduced total internal reflection and improved signal utilization
Confidence for Optically Challenging Samples
For many real-world samples, Mie-based sizing can be sensitive to unknown or variable optical properties. Bettersizer 2600 Plus features a patented refractive index measurement capability to improve measurement confidence when optics are challenging.
- Handle unknown materials with greater confidence
- Validate optical data at the working wavelength
- Increase result confidence for optically complex samples
Superior Performance
The laser diffraction system ensures precise and reliable particle size results in compliance with ISO 13320, enabling a wide range of industries and applications to achieve new levels of performance.
- Cover a wide measurement range from 0.02 to 2600 μm
- Achieve accuracy better than 0.5%
- Deliver repeatability better than 0.5%
- Complete measurements in as little as 10 s
| [Principle]: | Laser diffraction technology, dynamic image analysis |
| [Analysis Method]: | Mie scattering theory, Fraunhofer diffraction theory, dynamic image analysis |
| [Data Acquisition Rate]: | 11 kHz |
| [Typical Measurement Time]: | Less than 10 seconds |
| [Measurement Range]: | 0.02–2,600 μm (wet method); 0.1–2,600 μm (dry method); 2–3,500 μm (dynamic image) |
| [Accuracy]: | <= 0.5% |
| [Repeatability]: | <= 0.5% |
| [Special Functions]: | Automatic addition of surfactants, refractive index measurement, sample ratio calculation |
| [Optical System]: | Laser diffraction system |
| [Laser]: | 10 mW, 635 nm |
| [Detector]: | 92 detectors |
| [Measurement Angle]: | 0.016-165° |
| [Focusing]: | Autofocus |
| [Standards Compliance]: | ISO 13320, ISO 13322-2, USP <429> |
| [Dynamic Particle Imaging]: | Dynamic Imaging System |
| [CMOS Camera]: | 0.5x and 10x |
| [Frame Rate]: | 70fps at 5 megapixels |
| [Software]: | Full-featured particle size measurement software in Traditional Chinese and English, compliant with 21 CFR Part 11 |
| [Interface]: | USB 2.0 or 3.0 |
| [Voltage]: | 100-240V, 50/60 Hz |
| [Dimensions (L×W×H): | 745 × 305 × 305 mm |
| [Weight]: | 33 kg |
